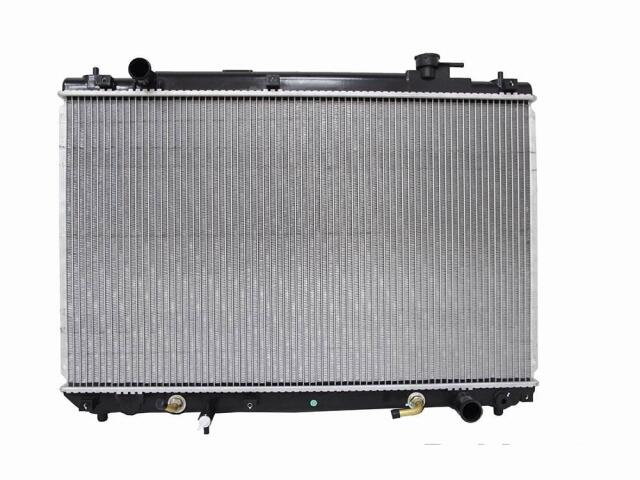

Radiator
OSC : 2454

Core Height (IN): 17 11/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 29 1/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 29 7/8
Inlet Header Width (IN): 2 1/16
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 29 7/8
Outlet Header Width (IN): 2 1/16
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	164002826*

品牌	号码
OE	RAD245*
