第三方数据OSC : 2415

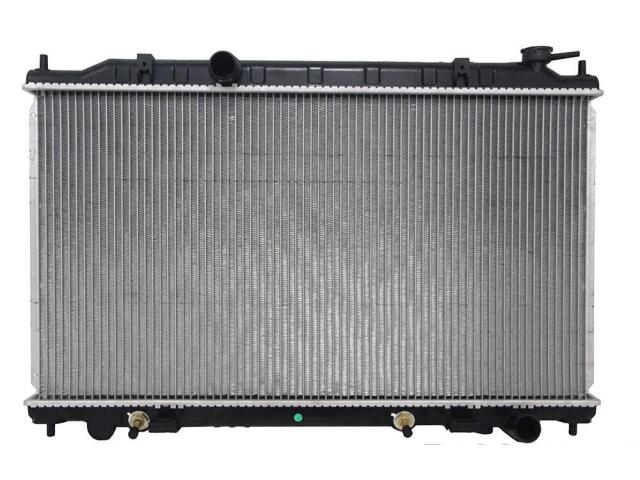

Radiator
OSC : 2415

Core Height (IN): 15 3/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 28 11/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 29 15/16
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 29 15/16
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1
Transmission Oil Cooler Distance between Fittings (IN): 13 3/4
Transmission Oil Cooler Included: Yes

适用车型

NISSAN (2)

OE号码

品牌	号码
OE	214108J10*

品牌	号码
OE	214608J10*

品牌	号码
OE	RAD241*
