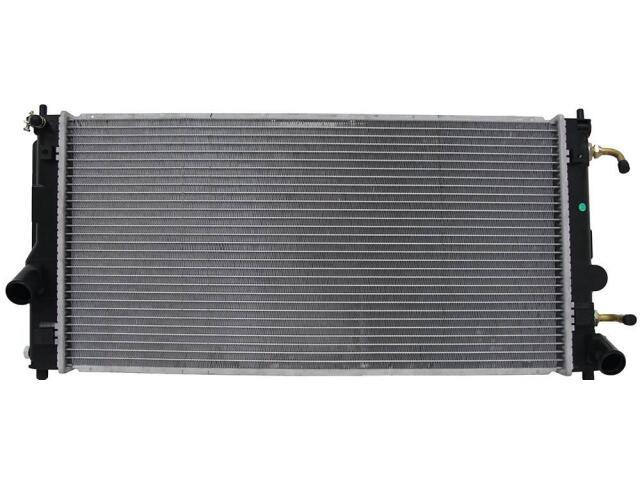

Radiator
OSC : 2335

Core Height (IN): 25 9/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 12 15/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 13 5/8
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 13 5/8
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1
Transmission Oil Cooler Distance between Fittings (IN): 8 7/8
Transmission Oil Cooler Included: Yes

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	164002206*

品牌	号码
OE	164002207*

品牌	号码
OE	RAD233*
