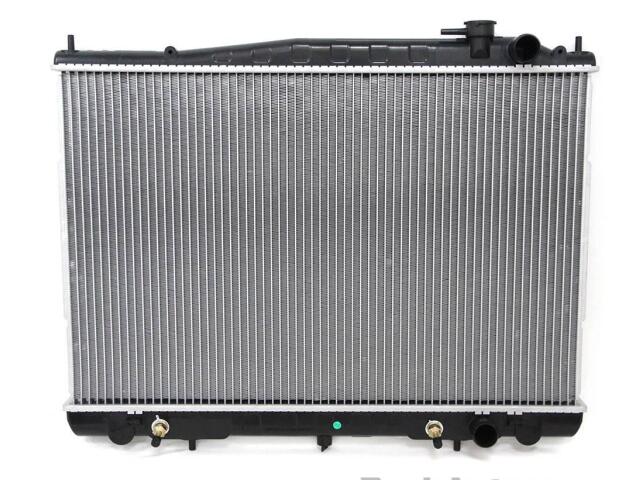

Radiator
OSC : 2215

Core Height (IN): 17 5/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 27 3/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 28 3/16
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 28 3/16
Outlet Header Width (IN): 2 3/8
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1 1/4
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes

适用车型

NISSAN (1)

OE号码

品牌	号码
OE	214103S0*
OE	214103S20*
OE	214103S60*

品牌	号码
OE	214603S60*
OE	214604S10*
OE	214609200*

品牌	号码
OE	214609Z00*
OE	RAD221*
