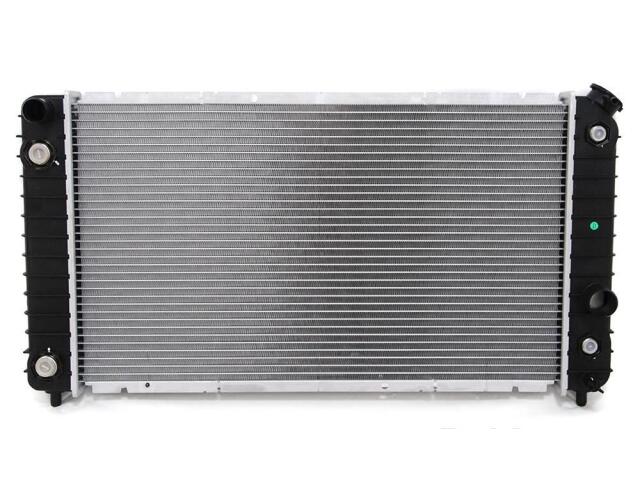

Radiator
OSC : 1826

Core Height (IN): 26 1/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 15 1/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: Yes
Engine Oil Cooler Number of Plates: 4 Plates
Engine Oil Cooler Type: PLATE
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 16 5/8
Inlet Header Width (IN): 2 7/16
Oil Cooler Fittings Distance Apart (IN): 11 1/2
Outlet Diameter (IN): 1 9/16
Outlet Header Length (IN): 16 5/8
Outlet Header Width (IN): 2 7/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 4

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	1512054*
OE	2083*

品牌	号码
OE	5247296*
OE	852472963*

品牌	号码
OE	OK01515200*
OE	RAD182*
