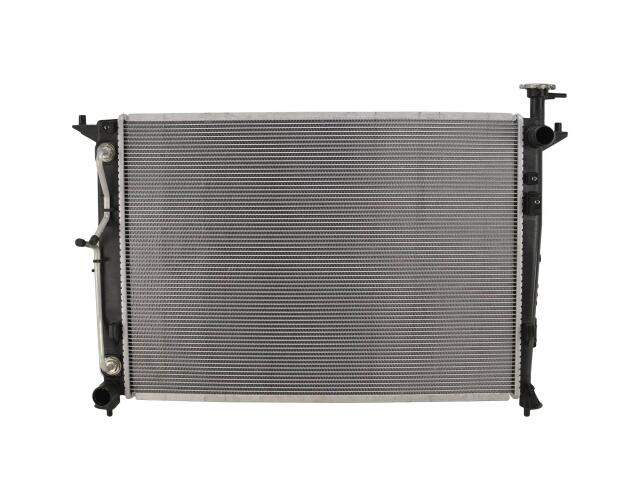

Radiator
OSC : 13520

Cap Included: w/ Cap - Micro 1.1
Core Height (IN): 26 7/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 18 11/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 19 7/16
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 19 7/16
Outlet Header Width (IN): 1 15/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 14 9/16
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 7

适用车型

KIA (1)

OE号码

品牌	号码
OE	25310C677*

品牌	号码
OE	RAD1352*
