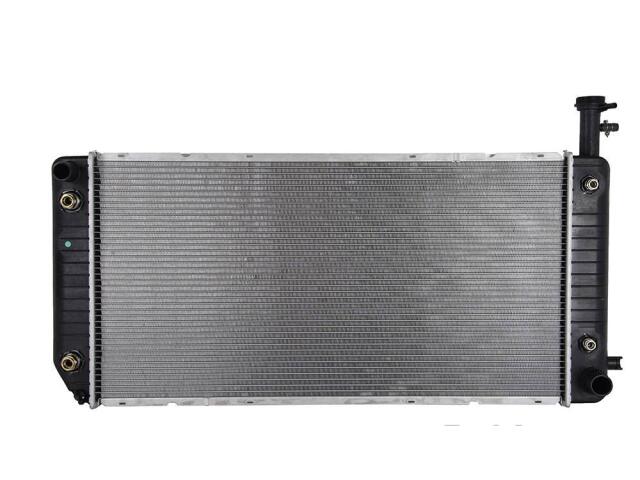

Radiator
OSC : 13476

Core Height (IN): 34
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 17 1/4
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: Yes
Engine Oil Cooler Number of Plates: 5 PLATES
Engine Oil Cooler Type: PLATE
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 18 1/2
Inlet Header Width (IN): 3 1/8
Oil Cooler Fittings Distance Apart (IN): 11 1/2
Outlet Diameter (IN): 1 9/16
Outlet Header Length (IN): 18 1/8
Outlet Header Width (IN): 3 1/8
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 7

适用车型

CHEVROLET (3)

EXPRESS 2500 (2)

EXPRESS 3500 (2)

EXPRESS 4500 (1)

GMC (3)

SAVANA 2500 (2)

SAVANA 3500 (2)

SAVANA 4500 (1)

OE号码

品牌	号码
OE	2077847*
OE	2082096*

品牌	号码
OE	8446208*

品牌	号码
OE	RAD1347*
