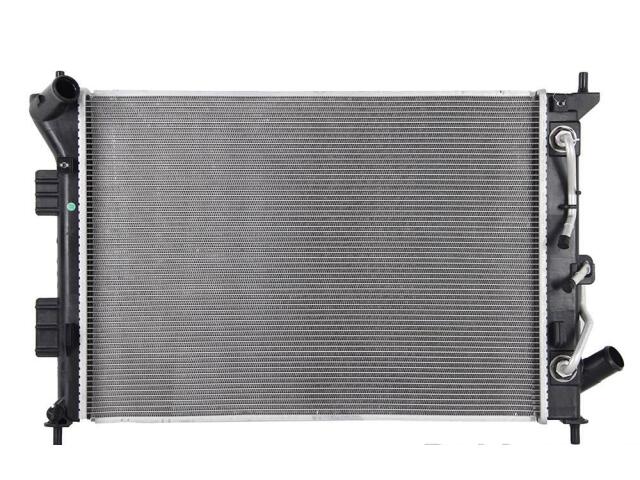

Radiator
OSC : 13414

Core Height (IN): 21 3/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 15 9/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 16 3/16
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 16 3/16
Outlet Header Width (IN): 1 15/16
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 7/8
Transmission Oil Cooler Distance between Fittings (IN): 11
Transmission Oil Cooler Included: Yes

适用车型

KIA (1)

OE号码

品牌	号码
OE	25310B205*

品牌	号码
OE	RAD1341*
