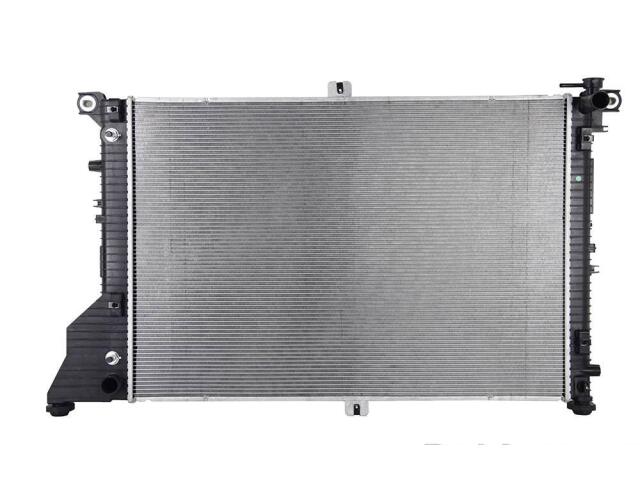

Radiator
OSC : 13335

Core Height (IN): 35 3/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1 9/16
Core Thickness (MM): 40
Core Width (IN): 24 1/8
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 24 15/16
Inlet Header Width (IN): 2 9/16
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 24 15/16
Outlet Header Width (IN): 2 9/16
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1 1/4
Transmission Oil Cooler Distance between Fittings (IN): 18 1/8
Transmission Oil Cooler Included: Yes

适用车型

NISSAN (3)

NV1500 (1)

NV2500 (2)

NV3500 (2)

OE号码

品牌	号码
OE	214601PA0*

品牌	号码
OE	RAD1333*
