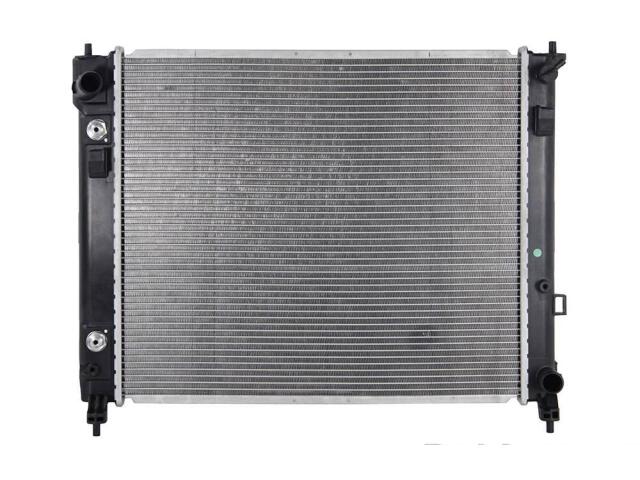

Radiator
OSC : 13303

Core Height (IN): 20 1/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 16 9/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/8
Inlet Header Length (IN): 17 3/4
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 1/8
Outlet Header Length (IN): 17 3/4
Outlet Header Width (IN): 1 15/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 10 7/16
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 5

适用车型

NISSAN (2)

OE号码

品牌	号码
OE	RAD1330*
