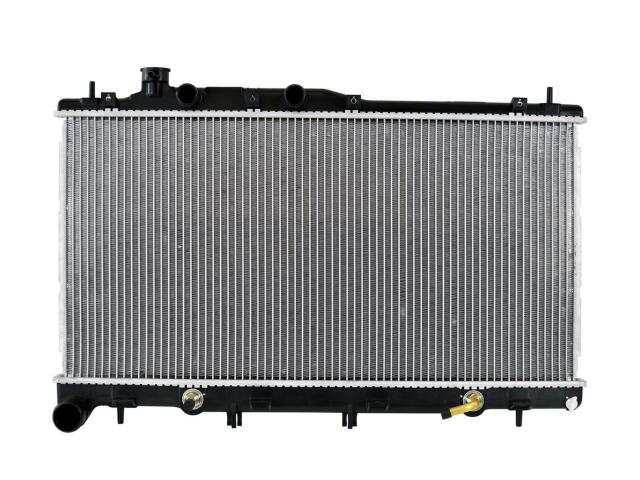

Radiator
OSC : 13281

Core Height (IN): 13 3/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 27 1/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/8
Inlet Header Length (IN): 28 3/8
Inlet Header Width (IN): 1 7/16
Outlet Diameter (IN): 1 9/16
Outlet Header Length (IN): 28 3/8
Outlet Header Width (IN): 1 11/16
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 7/8
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes

适用车型

SUBARU (2)

OE号码

品牌	号码
OE	45111AG02*

品牌	号码
OE	45111AJ05*

品牌	号码
OE	RAD1328*
