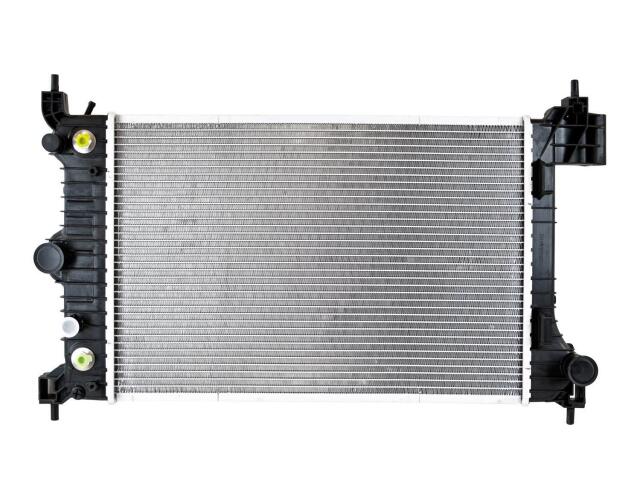

Radiator
OSC : 13247

Core Height (IN): 21 5/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 14 1/2
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 15 11/16
Inlet Header Width (IN): 1 7/16
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 15 11/16
Outlet Header Width (IN): 1 13/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 3

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	9529855*

品牌	号码
OE	9531604*

品牌	号码
OE	RAD1324*
