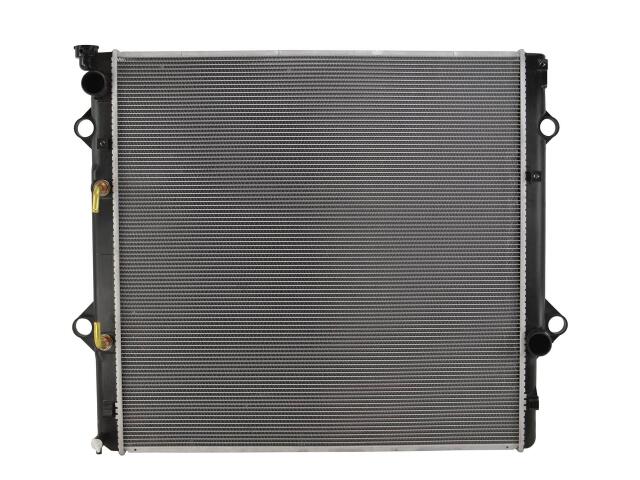

Radiator
OSC : 13210

Core Height (IN): 25 9/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 25 1/8
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: Yes
Engine Oil Cooler Number of Plates: 4 Plates
Engine Oil Cooler Type: PLATE
Inlet Diameter (IN): 1 1/2
Inlet Header Length (IN): 25 15/16
Inlet Header Width (IN): 1 7/8
Oil Cooler Fittings Distance Apart (IN): 9 13/16
Outlet Diameter (IN): 1 1/2
Outlet Header Length (IN): 25 15/16
Outlet Header Width (IN): 1 7/8
Tank Material: Plastic
Transmission Oil Cooler Included: No

适用车型

LEXUS (1)

OE号码

品牌	号码
OE	164003825*
OE	164003825*

品牌	号码
OE	164003825*
OE	164003825*

品牌	号码
OE	RAD1321*
