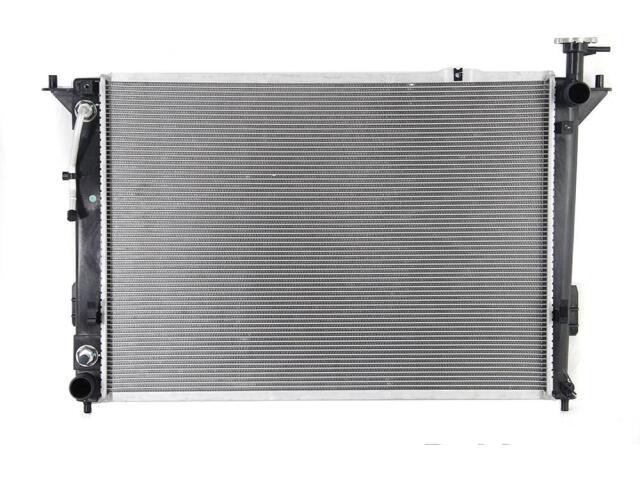

Radiator
OSC : 13192

Cap Included: w/ Cap - Micro 1.1
Core Height (IN): 26 3/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 18 11/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 19 5/16
Inlet Header Width (IN): 1 13/16
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 19 5/16
Outlet Header Width (IN): 1 13/16
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 7/8
Transmission Oil Cooler Distance between Fittings (IN): 14 9/16
Transmission Oil Cooler Included: Yes

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	253101U20*

品牌	号码
OE	253102B48*

品牌	号码
OE	RAD1319*
