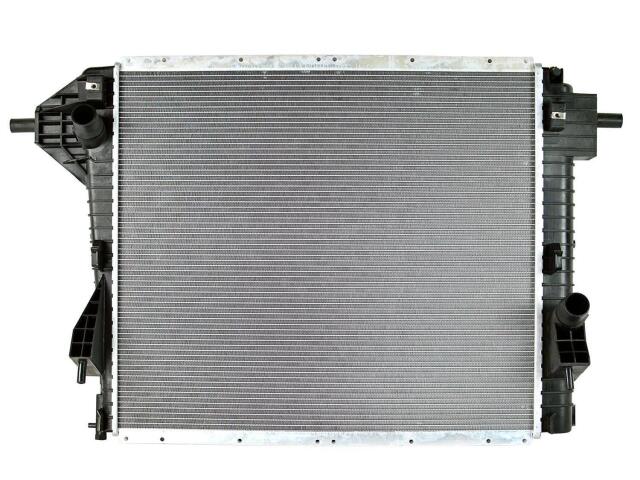

Radiator
OSC : 13145

Core Height (IN): 30 1/2
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 27 1/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 7/8
Inlet Header Length (IN): 27 7/8
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 7/8
Outlet Header Length (IN): 27 7/8
Outlet Header Width (IN): 3 3/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 12
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 6

适用车型

FORD (4)

OE号码

品牌	号码
OE	RAD1314*
