第三方数据OSC : 13142

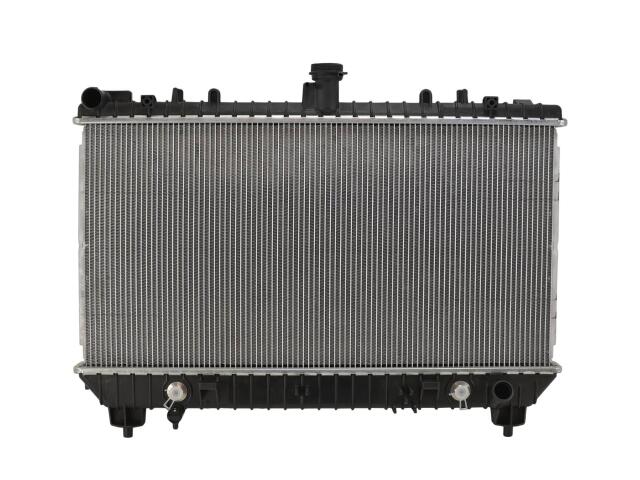

Radiator
OSC : 13142

Core Height (IN): 15 3/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 29 5/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 30 3/4
Inlet Header Width (IN): 2 5/8
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 30 3/4
Outlet Header Width (IN): 2 5/8
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 17 11/16
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 5

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	9221835*

品牌	号码
OE	RAD1314*
