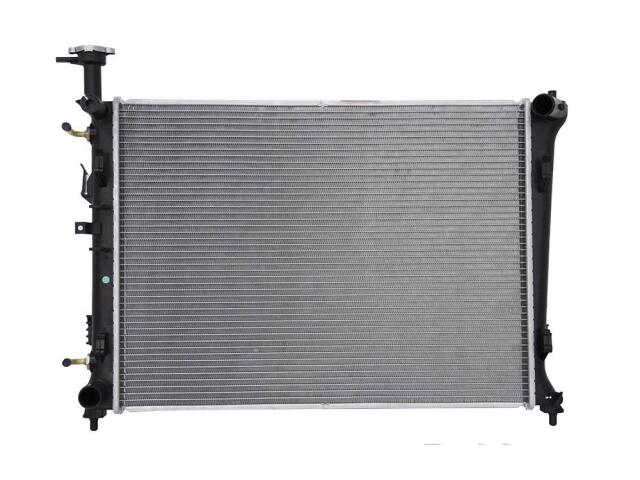

Radiator
OSC : 13133

Cap Included: w/ Cap - Micro 1.1
Core Height (IN): 23 5/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 17 1/2
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 18 3/16
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 18 3/16
Outlet Header Width (IN): 1 15/16
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 7/8
Transmission Oil Cooler Distance between Fittings (IN): 13 3/16
Transmission Oil Cooler Included: Yes

适用车型

KIA (2)

FORTE (2)

FORTE5 (2)

OE号码

品牌	号码
OE	253101M00*
OE	253101M02*
OE	253101M10*

品牌	号码
OE	253101M12*
OE	253101M15*

品牌	号码
OE	253101M32*
OE	RAD1313*
