第三方数据OSC : 13116

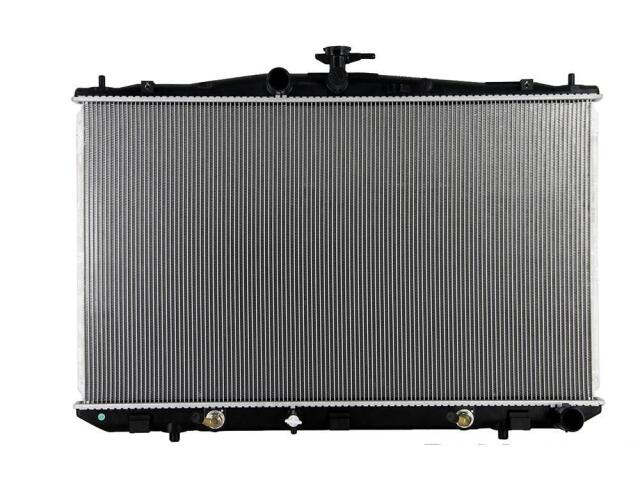

Radiator
OSC : 13116

Core Height (IN): 17 11/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 30 1/8
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 31 7/16
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 31 7/16
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1 1/8
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	160410P26*

品牌	号码
OE	160413161*

品牌	号码
OE	RAD1311*
