第三方数据OSC : 13104

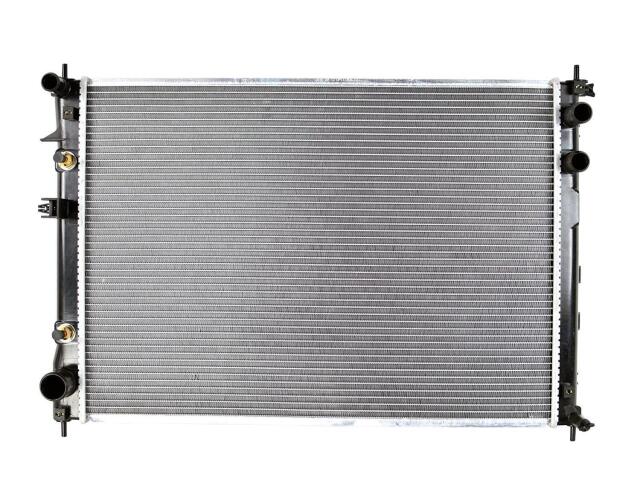

Radiator
OSC : 13104

Core Height (IN): 26 1/2
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 18 13/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/16
Inlet Header Length (IN): 19 15/16
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 9/16
Outlet Header Length (IN): 19 15/16
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1
Transmission Oil Cooler Distance between Fittings (IN): 9 13/16
Transmission Oil Cooler Included: Yes

适用车型

SUBARU (1)

OE号码

品牌	号码
OE	45111XA01*

品牌	号码
OE	RAD1310*
