OSC
13098

第三方数据OSC : 13098

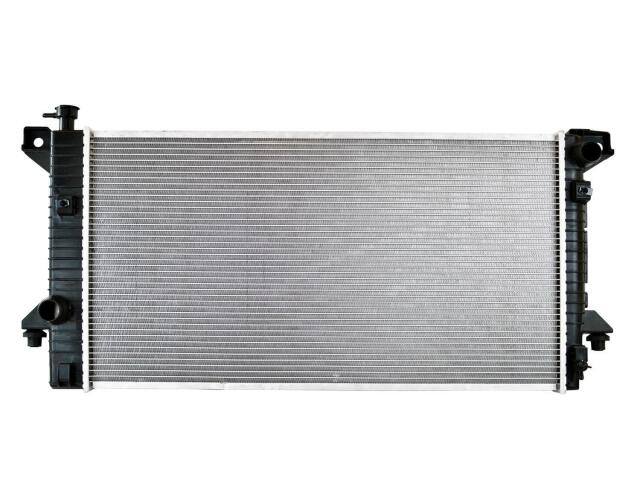

Radiator
OSC : 13098

Core Height (IN): 31 1/2
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 7/8
Core Thickness (MM): 22
Core Width (IN): 16 7/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/2
Inlet Header Length (IN): 17 3/4
Inlet Header Width (IN): 2 11/16
Outlet Diameter (IN): 1 1/2
Outlet Header Length (IN): 17 3/4
Outlet Header Width (IN): 2 11/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 13/16
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 7

适用车型

FORD (2)

LINCOLN (2)

OE号码

品牌	号码
OE	RAD1309*
