第三方数据OSC : 13097

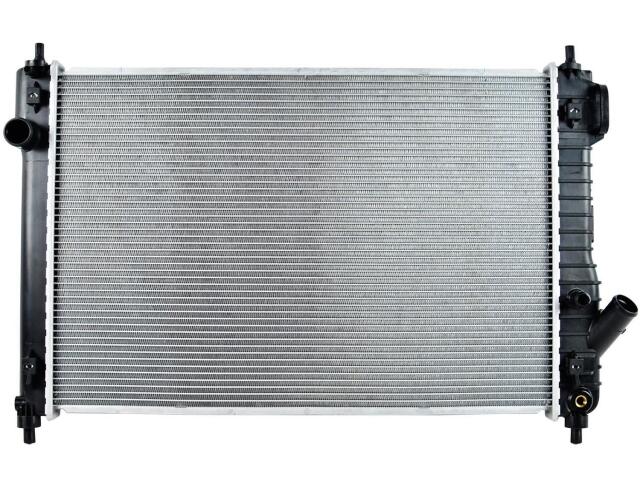

Radiator
OSC : 13097

Core Height (IN): 23 5/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 15 15/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 17 3/8
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 17 3/8
Outlet Header Width (IN): 1 15/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 10
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 3

适用车型

CHEVROLET (2)

PONTIAC (2)

OE号码

品牌	号码
OE	9522775*

品牌	号码
OE	9522775*

品牌	号码
OE	RAD1309*
