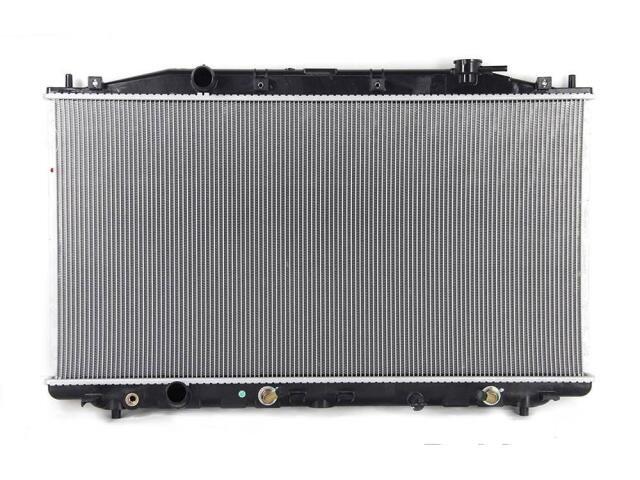

Radiator
OSC : 13082

Core Height (IN): 15 3/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 30 1/8
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 31 3/8
Inlet Header Width (IN): 1 7/16
Outlet Diameter (IN): 1 1/4
Outlet Header Length (IN): 31 3/8
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1 1/8
Transmission Oil Cooler Distance between Fittings (IN): 12 13/16
Transmission Oil Cooler Included: Yes

适用车型

ACURA (1)

OE号码

品牌	号码
OE	19010RL8A5*

品牌	号码
OE	RAD1308*
