OSC
13077

第三方数据OSC : 13077

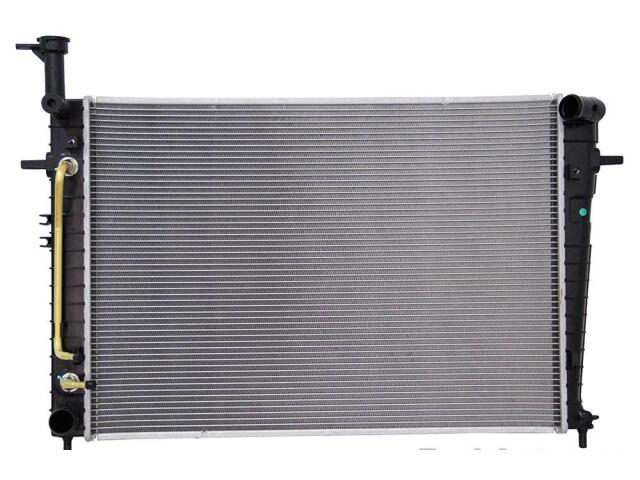

Radiator
OSC : 13077

Core Height (IN): 25 3/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 17 7/8
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 18 7/16
Inlet Header Width (IN): 1 15/16
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 18 7/16
Outlet Header Width (IN): 1 15/16
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 7/8
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	253102E40*

品牌	号码
OE	RAD1307*
