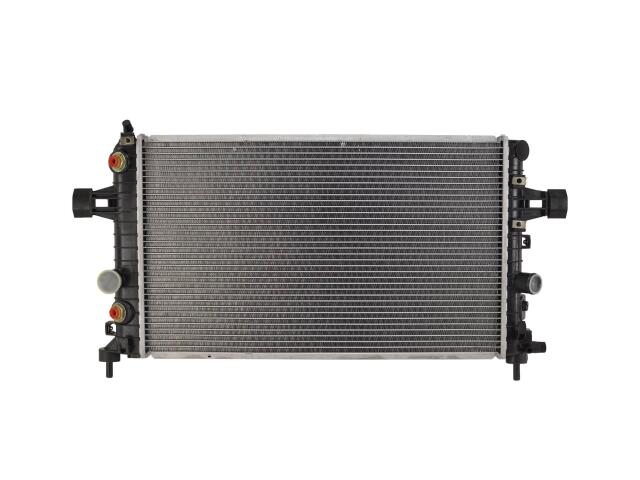

Radiator
OSC : 13058

Core Height (IN): 23 5/8
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 14 1/2
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 14 7/8
Inlet Header Width (IN): 2 5/16
Outlet Diameter (IN): 1 3/8
Outlet Header Length (IN): 14 7/8
Outlet Header Width (IN): 2 5/16
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1
Transmission Oil Cooler Distance between Fittings (IN): 10
Transmission Oil Cooler Included: Yes

适用车型

SATURN (1)

OE号码

品牌	号码
OE	1317011*

品牌	号码
OE	RAD1305*
