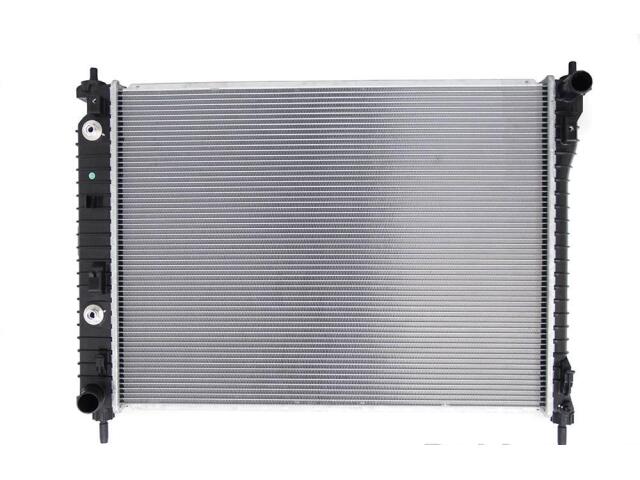

Radiator
OSC : 13057

Core Height (IN): 26 1/2
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 19 13/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 20 7/8
Inlet Header Width (IN): 2 5/8
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 20 7/8
Outlet Header Width (IN): 2 5/8
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 5

适用车型

CHEVROLET (1)

SATURN (1)

OE号码

品牌	号码
OE	2077704*

品牌	号码
OE	RAD1305*
