OSC
13056

第三方数据OSC : 13056

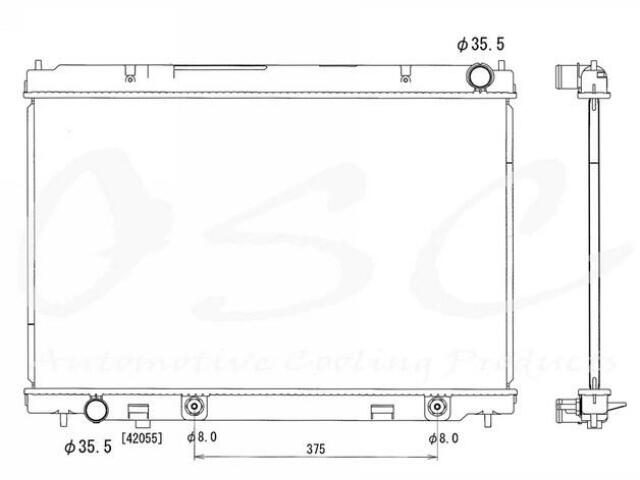

Radiator
OSC : 13056

Core Height (IN): 15 3/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1 1/4
Core Thickness (MM): 32
Core Width (IN): 27 7/8
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 1/2
Inlet Header Length (IN): 29 1/16
Inlet Header Width (IN): 2 5/16
Outlet Diameter (IN): 1 1/2
Outlet Header Length (IN): 29 1/16
Outlet Header Width (IN): 2 5/16
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 5

适用车型

LEXUS (1)

OE号码

品牌	号码
OE	164003821*

品牌	号码
OE	1640038H1*

品牌	号码
OE	RAD1305*
