第三方数据OSC : 13012

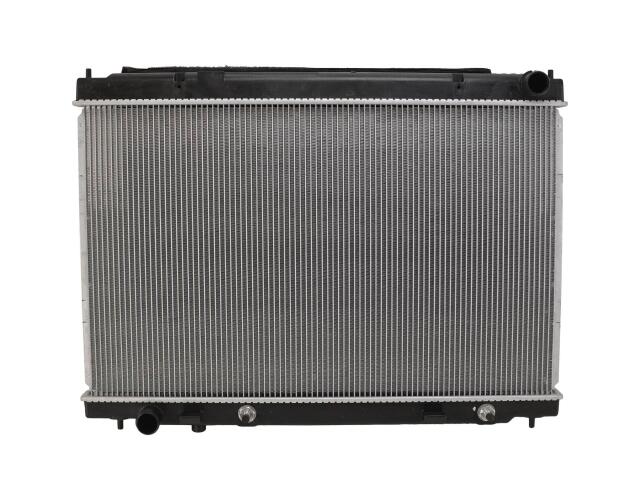

Radiator
OSC : 13012

Core Height (IN): 17 11/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 28 11/16
Down Flow Or Cross Flow Type: Downflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 7/16
Inlet Header Length (IN): 29 15/16
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 7/16
Outlet Header Length (IN): 29 15/16
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 14 3/4
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 6

适用车型

INFINITI (2)

OE号码

品牌	号码
OE	21460EH10*

品牌	号码
OE	RAD1301*
