GM GENUINE
86801856

第三方数据GM GENUINE : 86801856

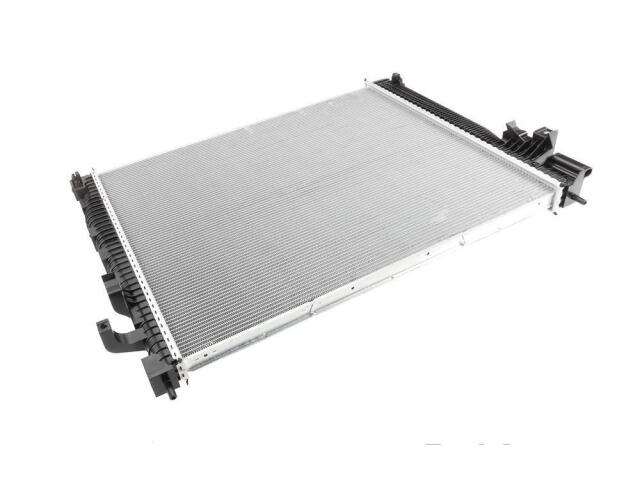

Radiator
GM GENUINE : 86801856

Coolant Level Indicator Port: No
Core Height (IN): 25.76
Core Height (MM): 654.3
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.26
Core Thickness (MM): 32
Core Width (IN): 30.71
Core Width (MM): 780
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Fitting Diameter (IN): 0.49
Engine Oil Cooler Fitting Diameter (MM): 12.5
Engine Oil Cooler Fitting Gender: Female
Engine Oil Cooler Fitting Type: Quick Connect
Engine Oil Cooler Fittings Distance Apart (IN): 11.81
Engine Oil Cooler Fittings Distance Apart (mm): 300
Engine Oil Cooler Included: No
Engine Oil Cooler Length (in): 13.54
Engine Oil Cooler Length (mm): 344
Engine Oil Cooler Type: PLATE
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34
Inlet Header Length (IN): 28.9
Inlet Header Length (MM): 734
Inlet Header Width (IN): 4.69
Inlet Header Width (MM): 119
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: Yes
Mounting Type: Bolt In
Outlet Diameter (IN): 1.34
Outlet Diameter (MM): 34
Outlet Header Length (IN): 28.9
Outlet Header Length (MM): 734
Outlet Header Width (IN): 3.82
Outlet Header Width (MM): 97
Outlet Location: Buttom Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: No

适用车型

BUICK (1)

CHEVROLET (1)
