GM GENUINE
85557760

第三方数据GM GENUINE : 85557760

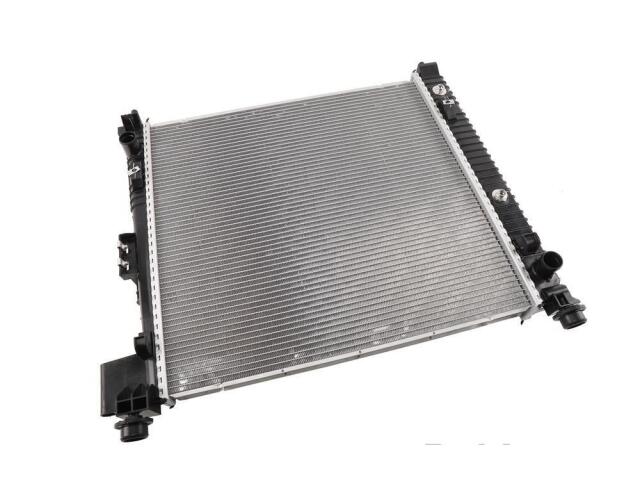

Radiator
GM GENUINE : 85557760

Coolant Level Indicator Port: No
Core Height (IN): 22.37
Core Height (MM): 568.32
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.02
Core Thickness (MM): 26
Core Width (IN): 23.5
Core Width (MM): 597
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34.15
Inlet Header Length (IN): 26.69
Inlet Header Length (MM): 678
Inlet Header Width (IN): 4.41
Inlet Header Width (MM): 112
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: Yes
Mounting Type: Bolt In
Outlet Diameter (IN): 1.34
Outlet Diameter (MM): 34.15
Outlet Header Length (IN): 26.26
Outlet Header Length (MM): 667
Outlet Header Width (IN): 4.02
Outlet Header Width (MM): 102
Outlet Location: Bottom Right
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Distance between Fittings (IN): 11.81
Transmission Oil Cooler Distance between Fittings (MM): 300
Transmission Oil Cooler Fitting Diameter (IN): 0.47
Transmission Oil Cooler Fitting Diameter (mm): 12
Transmission Oil Cooler Fitting Gender: Female
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Length (in): 13.54
Transmission Oil Cooler Length (mm): 344
Transmission Oil Cooler Type: PLATE

适用车型

CADILLAC (2)

CHEVROLET (1)

GMC (1)
