GM GENUINE
85519032

第三方数据GM GENUINE : 85519032

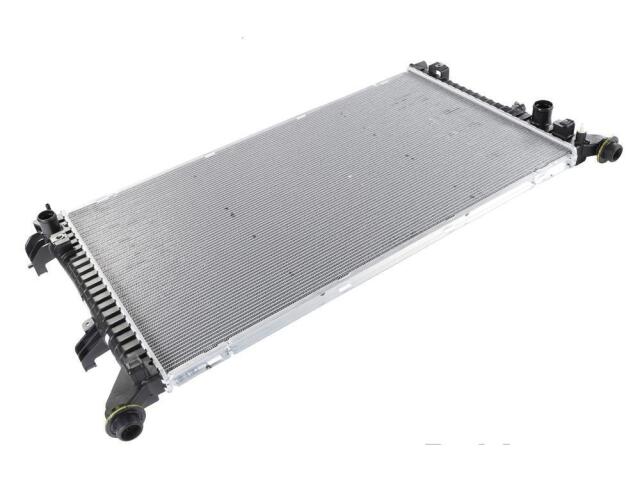

Radiator
GM GENUINE : 85519032

Coolant Level Indicator Port: No
Core Height (IN): 19.31
Core Height (MM): 490.45
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.1
Core Thickness (MM): 28
Core Width (IN): 35.63
Core Width (MM): 905.08
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.57
Inlet Diameter (MM): 40
Inlet Header Length (IN): 22.99
Inlet Header Length (MM): 584
Inlet Header Width (IN): 5.67
Inlet Header Width (MM): 144
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: Yes
Mounting Type: Bolt In
Outlet Diameter (IN): 1.57
Outlet Diameter (MM): 34
Outlet Header Length (IN): 22.87
Outlet Header Length (MM): 581
Outlet Header Width (IN): 3.86
Outlet Header Width (MM): 98
Outlet Location: Bottom Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Included: No

适用车型

CHEVROLET (1)

GMC (1)
