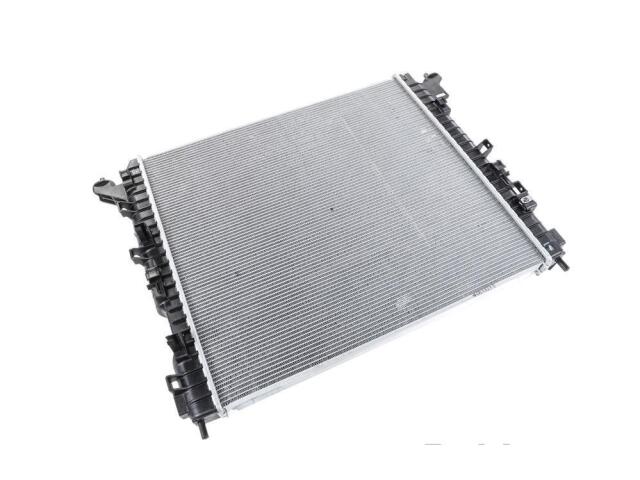

Radiator
GM GENUINE : 84908882

Coolant Level Indicator Port: No
Core Height (IN): 20.88
Core Height (MM): 530.35
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.4
Core Thickness (MM): 35.52
Core Width (IN): 22.99
Core Width (MM): 584.03
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34
Inlet Header Length (IN): 22.2
Inlet Header Length (MM): 564
Inlet Header Width (IN): 4.41
Inlet Header Width (MM): 112
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: Yes
Mounting Type: Bolt In
Outlet Diameter (IN): 1.42
Outlet Diameter (MM): 34
Outlet Header Length (IN): 22.2
Outlet Header Length (MM): 564
Outlet Header Width (IN): 4.41
Outlet Header Width (MM): 112
Outlet Location: Middle Right
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Included: No

适用车型

CADILLAC (1)
