GM GENUINE
84690758

第三方数据GM GENUINE : 84690758

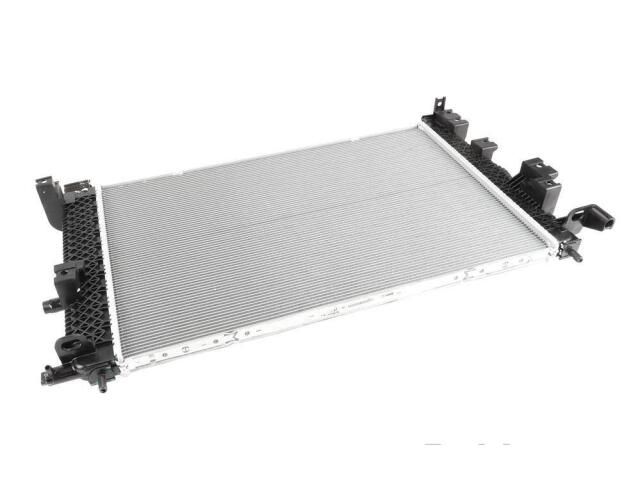

Radiator
GM GENUINE : 84690758

Coolant Level Indicator Port: No
Core Height (IN): 17.74
Core Height (MM): 450.67
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.76
Core Thickness (MM): 44.76
Core Width (IN): 27.63
Core Width (MM): 701.74
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.19
Inlet Diameter (MM): 30.15
Inlet Header Length (IN): 18.23
Inlet Header Length (MM): 463
Inlet Header Width (IN): 3.7
Inlet Header Width (MM): 94
Inlet Location: 1.19
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: Yes
Mounting Type: Bolt In
Outlet Diameter (IN): 1.26
Outlet Diameter (MM): 30.15
Outlet Header Length (IN): 17.95
Outlet Header Length (MM): 456
Outlet Header Width (IN): 4.09
Outlet Header Width (MM): 104
Outlet Location: Middle Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Included: No

适用车型

BUICK (1)
