GM GENUINE
84601193

第三方数据GM GENUINE : 84601193

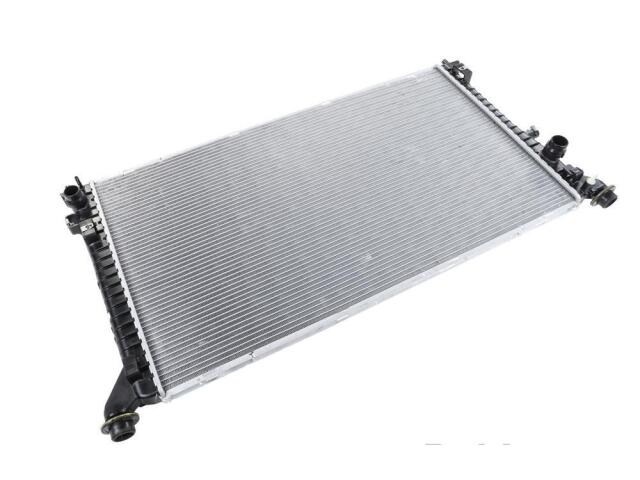

Radiator
GM GENUINE : 84601193

Coolant Level Indicator Port: No
Core Height (IN): 20.58
Core Height (MM): 522.73
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 2.15
Core Thickness (MM): 54.7
Core Width (IN): 35.98
Core Width (MM): 914
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.52
Inlet Diameter (MM): 38.5
Inlet Header Length (IN): 21.89
Inlet Header Length (MM): 556
Inlet Header Width (IN): 3.86
Inlet Header Width (MM): 98
Inlet Location: 1.28
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: Yes
Mounting Type: Bolt In
Outlet Diameter (IN): 1.5
Outlet Diameter (MM): 32.5
Outlet Header Length (IN): 21.89
Outlet Header Length (MM): 556
Outlet Header Width (IN): 3.86
Outlet Header Width (MM): 98
Outlet Location: Bottom Right
Proper Disposal Verbiage: [Delete]
Proper Handling Verbiage: [Delete]
Proper Storage Verbiage: [Delete]
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Included: No

适用车型

CHEVROLET (1)

GMC (1)
