GM GENUINE
21969

第三方数据GM GENUINE : 21969

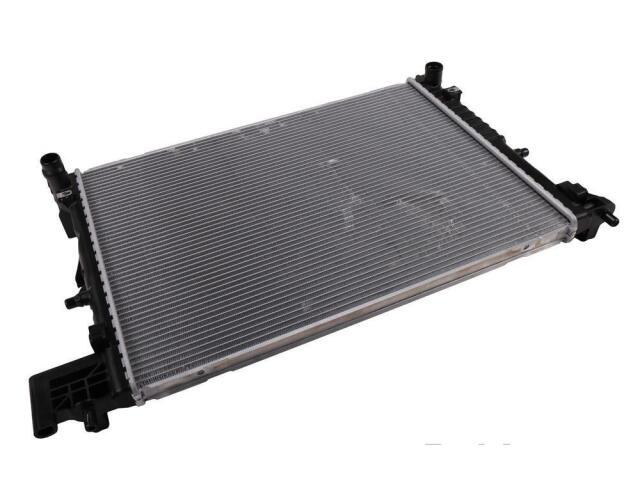

Radiator
GM GENUINE : 21969

Coolant Level Indicator Port: No
Core Height (IN): 18.36
Core Height (MM): 466.3
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.1
Core Thickness (MM): 28
Core Width (IN): 25.39
Core Width (MM): 645
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34
Inlet Header Length (IN): 20.51
Inlet Header Length (MM): 521
Inlet Header Width (IN): 3.54
Inlet Header Width (MM): 90
Inlet Location: 1.28
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: Yes
Mounting Type: Bolt In
Outlet Diameter (IN): 1.3
Outlet Diameter (MM): 32.5
Outlet Header Length (IN): 20.51
Outlet Header Length (MM): 521
Outlet Header Width (IN): 4.88
Outlet Header Width (MM): 124
Outlet Location: Top Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Included: No

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	8455176*

品牌	号码
OE	1005582*
