GM GENUINE
21928

第三方数据GM GENUINE : 21928

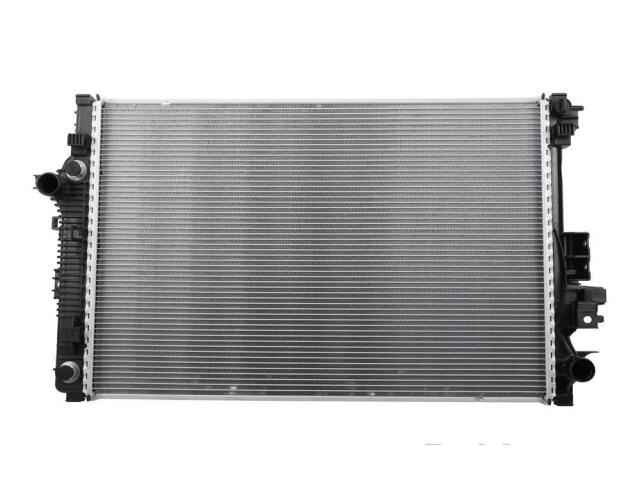

Radiator
GM GENUINE : 21928

Coolant Level Indicator Port: No
Core Height (IN): 17.26
Core Height (MM): 438.3
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.02
Core Thickness (MM): 26
Core Width (IN): 25.98
Core Width (MM): 660
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34.15
Inlet Header Length (IN): 18.07
Inlet Header Length (MM): 459
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: Yes
Mounting Type: Bolt In
Outlet Diameter (IN): 1.34
Outlet Diameter (MM): 34.15
Outlet Header Length (IN): 18.07
Outlet Header Length (MM): 459
Outlet Location: Bottom Right
Proper Disposal Verbiage: [Delete]
Proper Handling Verbiage: [Delete]
Proper Storage Verbiage: [Delete]
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: No

适用车型

BUICK (2)

OE号码

品牌	号码
OE	8420806*

品牌	号码
OE	0648737*
