GM GENUINE
21904

第三方数据GM GENUINE : 21904

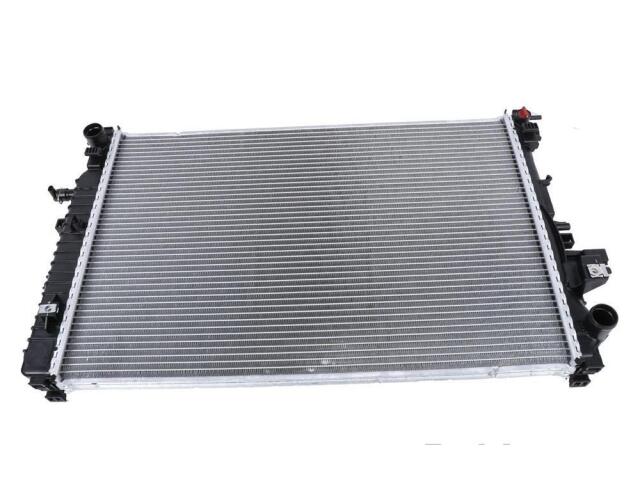

Radiator
GM GENUINE : 21904

Coolant Level Indicator Port: No
Core Height (IN): 17.26
Core Height (MM): 438.3
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 0.63
Core Thickness (MM): 16
Core Width (IN): 25.98
Core Width (MM): 660
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34.15
Inlet Header Length (IN): 18.11
Inlet Header Length (MM): 460
Inlet Header Width (IN): 3.27
Inlet Header Width (MM): 83
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: Yes
Mounting Type: Bolt In
Outlet Diameter (IN): 1.34
Outlet Diameter (MM): 34.15
Outlet Header Length (IN): 18.11
Outlet Header Length (MM): 460
Outlet Header Width (IN): 3.74
Outlet Header Width (MM): 95
Outlet Location: Bottom Right
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Included: No

适用车型

BUICK (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	8449362*
