GM GENUINE
21901

第三方数据GM GENUINE : 21901

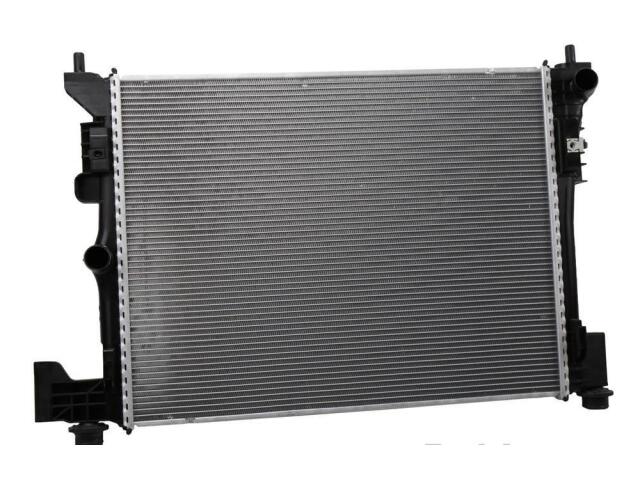

Radiator
GM GENUINE : 21901

Coolant Level Indicator Port: No
Core Height (IN): 18.2
Core Height (MM): 462.25
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.02
Core Thickness (MM): 26
Core Width (IN): 23.62
Core Width (MM): 600
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34.15
Inlet Header Length (IN): 20.71
Inlet Header Length (MM): 526
Inlet Header Width (IN): 3.03
Inlet Header Width (MM): 77
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Pin
Outlet Diameter (IN): 1.34
Outlet Diameter (MM): 34.15
Outlet Header Length (IN): 20.67
Outlet Header Length (MM): 525
Outlet Header Width (IN): 4.92
Outlet Header Width (MM): 125
Outlet Location: Middle Left
Proper Disposal Verbiage: [Delete]
Proper Handling Verbiage: [Delete]
Proper Storage Verbiage: [Delete]
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Included: No

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	8421522*

品牌	号码
OE	2338587*
