GM GENUINE
21898

第三方数据GM GENUINE : 21898

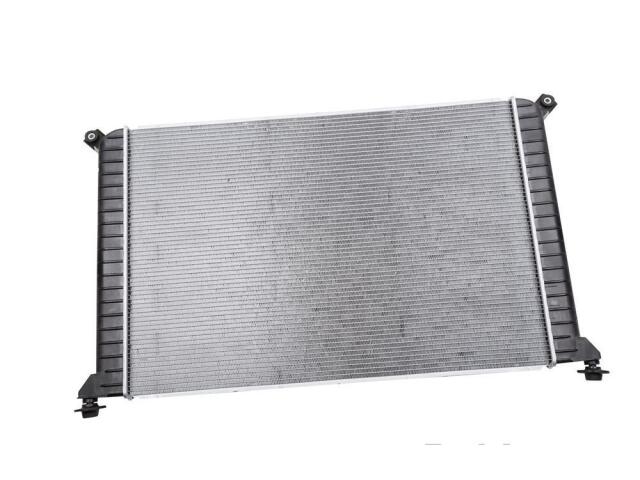

Radiator
GM GENUINE : 21898

Coolant Level Indicator Port: No
Core Height (IN): 23.23
Core Height (MM): 590
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 0.87
Core Thickness (MM): 22
Core Width (IN): 34.02
Core Width (MM): 864
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Fitting Diameter (IN): 0.63
Engine Oil Cooler Fitting Diameter (MM): 16
Engine Oil Cooler Fitting Gender: Female
Engine Oil Cooler Fitting Type: Quick Connect
Engine Oil Cooler Fittings Distance Apart (IN): 11.5
Engine Oil Cooler Fittings Distance Apart (mm): 292
Engine Oil Cooler Included: No
Engine Oil Cooler Length (in): 13.03
Engine Oil Cooler Length (mm): 331
Engine Oil Cooler Number of Plates: 3
Engine Oil Cooler Type: PLATE
Frame Included: Yes
Inlet Diameter (IN): 1.53
Inlet Diameter (MM): 38.91
Inlet Header Length (IN): 26.1
Inlet Header Length (MM): 663
Inlet Header Width (IN): 5.16
Inlet Header Width (MM): 131
Inlet Location: 1.3
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Bolt In
Outlet Diameter (IN): 1.54
Outlet Diameter (MM): 33.08
Outlet Header Length (IN): 26.02
Outlet Header Length (MM): 661
Outlet Header Width (IN): 5.12
Outlet Header Width (MM): 130
Outlet Location: Bottom Right
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: No

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	2337865*

品牌	号码
OE	2187*

品牌	号码
OE	8417952*
