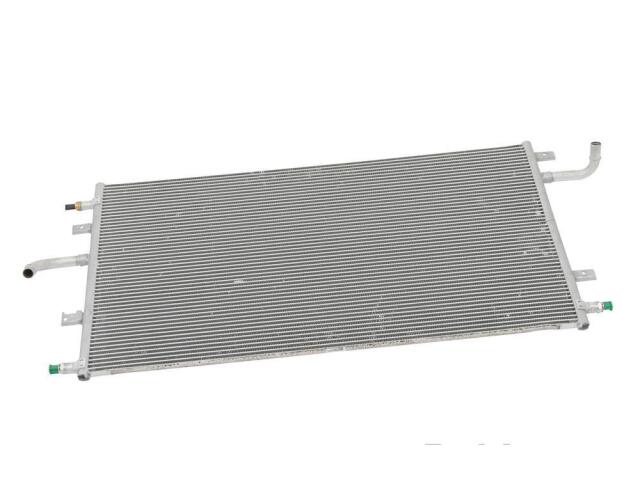

Radiator
GM GENUINE : 21897

Coolant Level Indicator Port: No
Core Height (IN): 17.35
Core Height (MM): 440.68
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 0.63
Core Thickness (MM): 16
Core Width (IN): 32.6
Core Width (MM): 828
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
External Transmission Oil Cooler Location: Top Side
Frame Included: No
Inlet Diameter (IN): 0.79
Inlet Diameter (MM): 20
Inlet Header Length (IN): 8.31
Inlet Header Length (MM): 211
Inlet Location: Top Right
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Bolt In
Outlet Diameter (IN): 0.79
Outlet Diameter (MM): 20
Outlet Header Length (IN): 8.31
Outlet Header Length (MM): 211
Outlet Location: Middle Left
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Transmission Oil Cooler Distance between Fittings (IN): 35.94
Transmission Oil Cooler Distance between Fittings (MM): 913
Transmission Oil Cooler Fitting Diameter (IN): 0.47
Transmission Oil Cooler Fitting Diameter (mm): 12
Transmission Oil Cooler Fitting Gender: Female
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Length (in): 32.99
Transmission Oil Cooler Length (mm): 838
Transmission Oil Cooler Type: Core

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	8402696*
