GM GENUINE
21851

第三方数据GM GENUINE : 21851

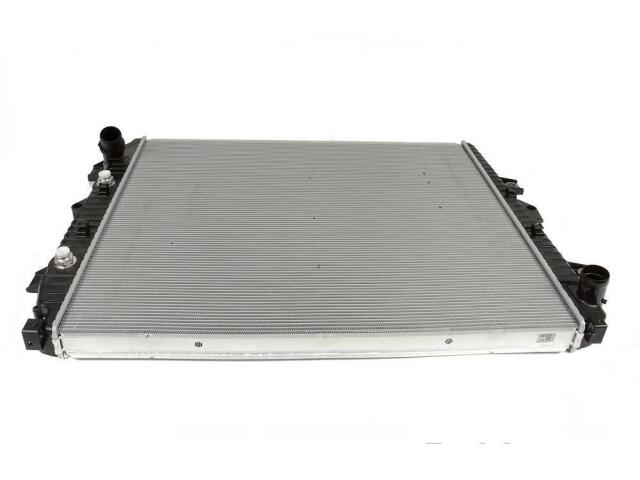

Radiator
GM GENUINE : 21851

Coolant Level Indicator Port: No
Core Height (IN): 27.8
Core Height (MM): 706
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.89
Core Thickness (MM): 48
Core Width (IN): 33.46
Core Width (MM): 850
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 2.03
Inlet Diameter (MM): 51.51
Inlet Header Length (IN): 28.82
Inlet Header Length (MM): 732
Inlet Header Width (IN): 4.8
Inlet Header Width (MM): 122
Inlet Location: 1.82
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Pin
Outlet Diameter (IN): 2.01
Outlet Diameter (MM): 46.2
Outlet Header Length (IN): 28.82
Outlet Header Length (MM): 732
Outlet Header Width (IN): 5.12
Outlet Header Width (MM): 130
Outlet Location: Bottom Right
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Distance between Fittings (IN): 11.5
Transmission Oil Cooler Distance between Fittings (MM): 292
Transmission Oil Cooler Fitting Diameter (IN): 0.79
Transmission Oil Cooler Fitting Diameter (mm): 20
Transmission Oil Cooler Fitting Gender: Female
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Length (in): 12.95
Transmission Oil Cooler Length (mm): 329
Transmission Oil Cooler Plate Quantity: 7
Transmission Oil Cooler Type: PLATE

适用车型

CHEVROLET (2)

GMC (2)

OE号码

品牌	号码
OE	2317244*

品牌	号码
OE	2180*
