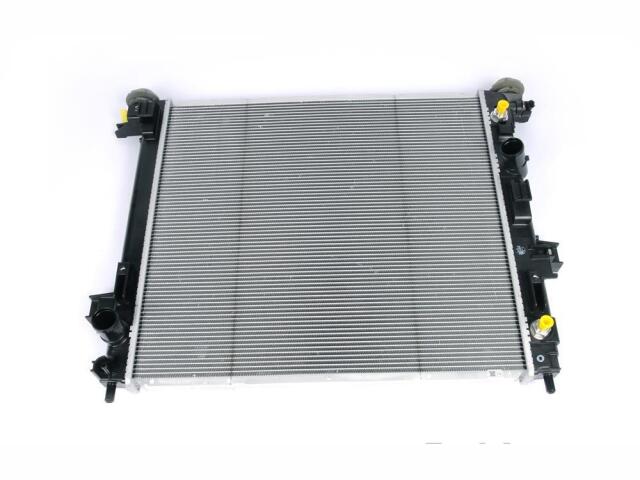

Radiator
GM GENUINE : 21821

Coolant Level Indicator Port: No
Core Height (IN): 18.84
Core Height (MM): 478.6
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.06
Core Thickness (MM): 27.01
Core Width (IN): 20.67
Core Width (MM): 524.9
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34.15
Inlet Header Length (IN): 21.61
Inlet Header Length (MM): 549
Inlet Header Width (IN): 4.02
Inlet Header Width (MM): 102
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Pin
Outlet Diameter (IN): 1.34
Outlet Diameter (MM): 34.15
Outlet Header Length (IN): 21.61
Outlet Header Length (MM): 549
Outlet Header Width (IN): 3.54
Outlet Header Width (MM): 90
Outlet Location: Bottom Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Distance between Fittings (IN): 14.76
Transmission Oil Cooler Distance between Fittings (MM): 375
Transmission Oil Cooler Fitting Diameter (IN): 0.47
Transmission Oil Cooler Fitting Diameter (mm): 12
Transmission Oil Cooler Fitting Gender: Female
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Length (in): 15.79
Transmission Oil Cooler Length (mm): 401
Transmission Oil Cooler Plate Quantity: 7
Transmission Oil Cooler Type: PLATE

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	2296612*
