GM GENUINE
21800

第三方数据GM GENUINE : 21800

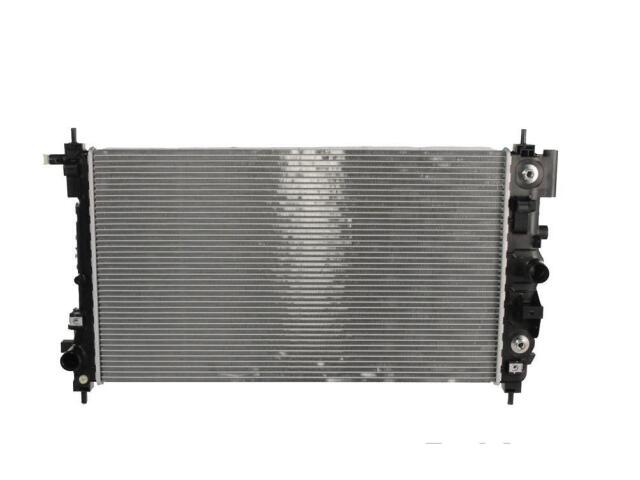

Radiator
GM GENUINE : 21800

Coolant Level Indicator Port: No
Core Height (IN): 15.73
Core Height (MM): 399.49
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.1
Core Thickness (MM): 28
Core Width (IN): 26.77
Core Width (MM): 680
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34
Inlet Header Length (IN): 18.9
Inlet Header Length (MM): 480
Inlet Header Width (IN): 3.5
Inlet Header Width (MM): 89
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Pin
Outlet Diameter (IN): 1.34
Outlet Diameter (MM): 34
Outlet Header Length (IN): 18.9
Outlet Header Length (MM): 480
Outlet Header Width (IN): 2.91
Outlet Header Width (MM): 74
Outlet Location: Middle Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Distance between Fittings (IN): 11.5
Transmission Oil Cooler Distance between Fittings (MM): 292
Transmission Oil Cooler Fitting Diameter (IN): 0.47
Transmission Oil Cooler Fitting Diameter (mm): 12
Transmission Oil Cooler Fitting Gender: Female
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Length (in): 13.11
Transmission Oil Cooler Length (mm): 333
Transmission Oil Cooler Plate Quantity: 3
Transmission Oil Cooler Type: PLATE

适用车型

CADILLAC (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	2274716*
