GM GENUINE
21765

第三方数据GM GENUINE : 21765

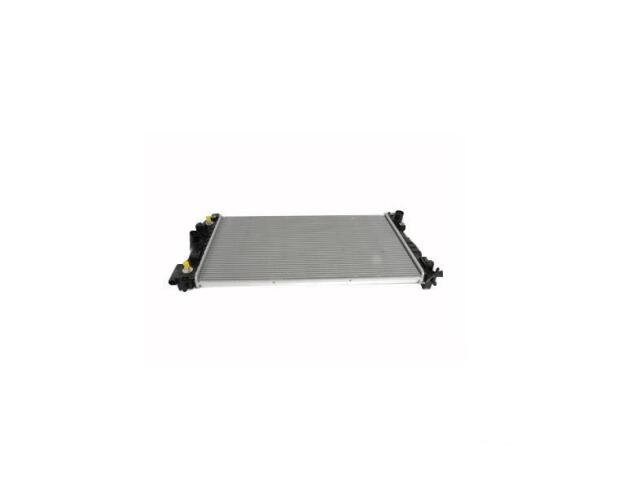

Radiator
GM GENUINE : 21765

Coolant Level Indicator Port: No
Core Height (IN): 16.44
Core Height (MM): 417.67
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 2.03
Core Thickness (MM): 51.58
Core Width (IN): 27.72
Core Width (MM): 704
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34
Inlet Header Length (IN): 18.9
Inlet Header Length (MM): 480
Inlet Header Width (IN): 2.83
Inlet Header Width (MM): 72
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Pin
Outlet Diameter (IN): 1.34
Outlet Diameter (MM): 34
Outlet Header Length (IN): 18.9
Outlet Header Length (MM): 480
Outlet Header Width (IN): 3.46
Outlet Header Width (MM): 88
Outlet Location: Middle Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Distance between Fittings (IN): 11.5
Transmission Oil Cooler Distance between Fittings (MM): 292
Transmission Oil Cooler Fitting Diameter (IN): 0.47
Transmission Oil Cooler Fitting Diameter (mm): 12
Transmission Oil Cooler Fitting Gender: Female
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Length (in): 13.11
Transmission Oil Cooler Length (mm): 333
Transmission Oil Cooler Plate Quantity: 3
Transmission Oil Cooler Type: PLATE

适用车型

BUICK (3)

LACROSSE (3)

REGAL (1)

ALLURE (2)

CHEVROLET (2)

OE号码

品牌	号码
OE	2345363*

品牌	号码
OE	1330019*

品牌	号码
OE	1711915*
