GM GENUINE
21735

第三方数据GM GENUINE : 21735

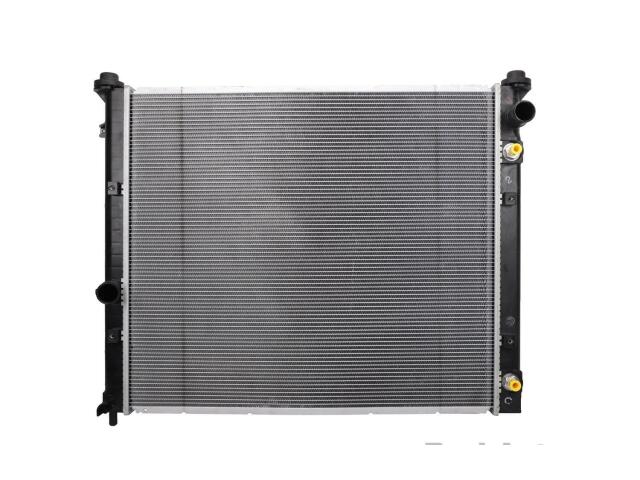

Radiator
GM GENUINE : 21735

Coolant Level Indicator Port: No
Core Height (IN): 20.35
Core Height (MM): 517
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.06
Core Thickness (MM): 27
Core Width (IN): 24.17
Core Width (MM): 613.8
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34
Inlet Header Length (IN): 22.83
Inlet Header Length (MM): 580
Inlet Header Width (IN): 2.6
Inlet Header Width (MM): 66
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Pin
Outlet Diameter (IN): 1.14
Outlet Diameter (MM): 34
Outlet Header Length (IN): 22.83
Outlet Header Length (MM): 580
Outlet Header Width (IN): 2.36
Outlet Header Width (MM): 60
Outlet Location: Bottom Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Distance between Fittings (IN): 14.76
Transmission Oil Cooler Distance between Fittings (MM): 375
Transmission Oil Cooler Fitting Diameter (IN): 0.47
Transmission Oil Cooler Fitting Diameter (mm): 12
Transmission Oil Cooler Fitting Gender: Female
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Length (in): 15.79
Transmission Oil Cooler Length (mm): 401
Transmission Oil Cooler Plate Quantity: 7
Transmission Oil Cooler Type: PLATE

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	2587666*

品牌	号码
OE	1711912*
