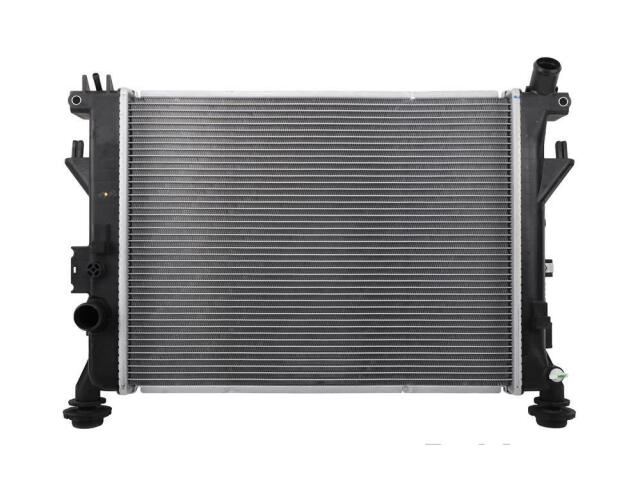

Radiator
GM GENUINE : 21720

Coolant Level Indicator Port: No
Core Height (IN): 14.83
Core Height (MM): 376.6
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 0.63
Core Thickness (MM): 16
Core Width (IN): 19.61
Core Width (MM): 498.02
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.3
Inlet Diameter (MM): 33
Inlet Header Length (IN): 18.39
Inlet Header Length (MM): 467
Inlet Header Width (IN): 3.39
Inlet Header Width (MM): 86
Inlet Location: Top Right
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Pin
Outlet Diameter (IN): 1.14
Outlet Diameter (MM): 29
Outlet Header Length (IN): 17.6
Outlet Header Length (MM): 447
Outlet Header Width (IN): 3.39
Outlet Header Width (MM): 86
Outlet Location: Bottom Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Included: No

适用车型

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
OE	1913043*
