GM GENUINE
21609

第三方数据GM GENUINE : 21609

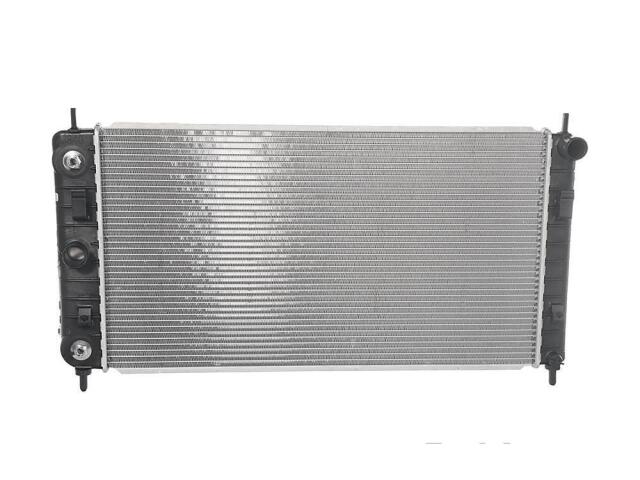

Radiator
GM GENUINE : 21609

Coolant Level Indicator Port: No
Core Height (IN): 14.59
Core Height (MM): 370.65
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 0.87
Core Thickness (MM): 22
Core Width (IN): 26.77
Core Width (MM): 680
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.33
Inlet Diameter (MM): 33.7
Inlet Header Length (IN): 17.2
Inlet Header Length (MM): 437
Inlet Header Width (IN): 2.13
Inlet Header Width (MM): 54
Inlet Location: 1.33
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Bolt In
Outlet Diameter (IN): 1.34
Outlet Diameter (MM): 33.7
Outlet Header Length (IN): 17.17
Outlet Header Length (MM): 436
Outlet Header Width (IN): 2.95
Outlet Header Width (MM): 75
Outlet Location: Middle Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Distance between Fittings (IN): 11.5
Transmission Oil Cooler Distance between Fittings (MM): 292
Transmission Oil Cooler Fitting Diameter (IN): 0.47
Transmission Oil Cooler Fitting Diameter (mm): 12
Transmission Oil Cooler Fitting Gender: Female
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Length (in): 13.11
Transmission Oil Cooler Length (mm): 333
Transmission Oil Cooler Plate Quantity: 3
Transmission Oil Cooler Type: PLATE

适用车型

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
OE	5249568*
