GM GENUINE
20777042

第三方数据GM GENUINE : 20777042

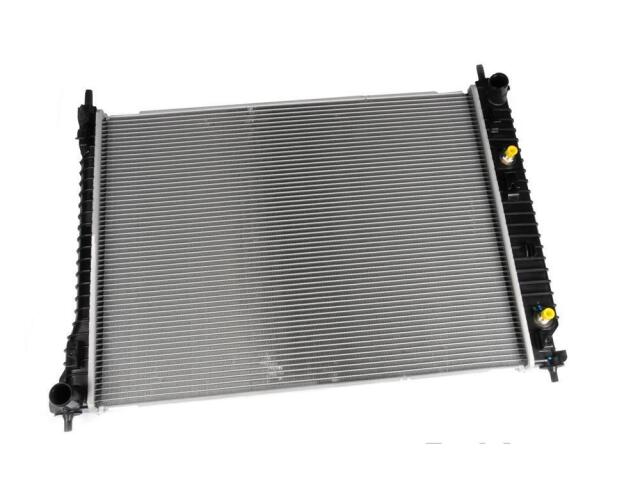

Radiator
GM GENUINE : 20777042

Coolant Level Indicator Port: No
Core Height (IN): 20.16
Core Height (MM): 512.05
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1.06
Core Thickness (MM): 27
Core Width (IN): 27.53
Core Width (MM): 699.32
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Frame Included: Yes
Inlet Diameter (IN): 1.34
Inlet Diameter (MM): 34
Inlet Header Length (IN): 22.28
Inlet Header Length (MM): 566
Inlet Header Width (IN): 2.52
Inlet Header Width (MM): 64
Inlet Location: 1.34
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Pin
Outlet Diameter (IN): 1.34
Outlet Diameter (MM): 34
Outlet Header Length (IN): 22.28
Outlet Header Length (MM): 566
Outlet Header Width (IN): 2.72
Outlet Header Width (MM): 69
Outlet Location: Bottom Left
Radiator Cap Included: No
Tank Material: Plastic
Thermostat Included: No
Transmission Oil Cooler Distance between Fittings (IN): 11.5
Transmission Oil Cooler Distance between Fittings (MM): 292
Transmission Oil Cooler Fitting Diameter (IN): 0.47
Transmission Oil Cooler Fitting Diameter (mm): 12
Transmission Oil Cooler Fitting Gender: Female
Transmission Oil Cooler Fitting Type: Quick Connect
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Length (in): 13.23
Transmission Oil Cooler Length (mm): 336
Transmission Oil Cooler Plate Quantity: 6
Transmission Oil Cooler Type: PLATE

适用车型

CHEVROLET (1)

SATURN (1)

OE号码

品牌	号码
OE	9680073*
