第三方数据FVP : RAD2881

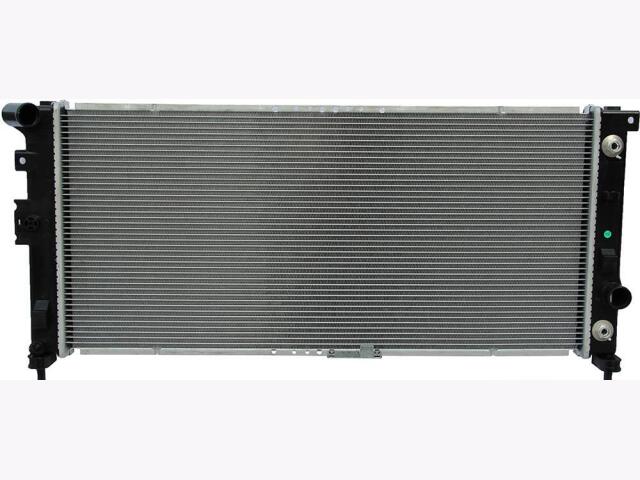

Radiator
FVP : RAD2881

Core Height: 30-7/16 (IN)
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 26 (MM)
Core Width: 14 (IN)
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter: 1-5/16 (IN)
Inlet Header Length: 14-7/8 (IN)
Inlet Header Width: 2-5/8 (IN)
Outlet Diameter: 1-5/16 (IN)
Outlet Header Length: 14-7/8 (IN)
Outlet Header Width: 2-5/8 (IN)
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings: 10-13/16 (IN)
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 9

适用车型

BUICK (1)

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
OE	1589212*
