FVP
RAD2853

第三方数据FVP : RAD2853

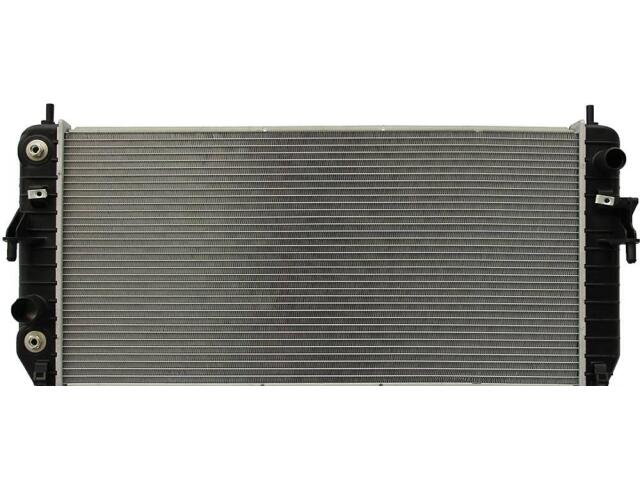

Radiator
FVP : RAD2853

Core Height: 30-1/2 (IN)
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 32 (MM)
Core Width: 15-1/16 (IN)
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter: 1-9/16 (IN)
Inlet Header Length: 16-5/8 (IN)
Inlet Header Width: 2-7/16 (IN)
Outlet Diameter: 1-5/16 (IN)
Outlet Header Length: 16-5/8 (IN)
Outlet Header Width: 2-7/16 (IN)
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings: 11-1/2 (IN)
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 4

适用车型

BUICK (1)

CADILLAC (1)

OE号码

品牌	号码
OE	2576958*
