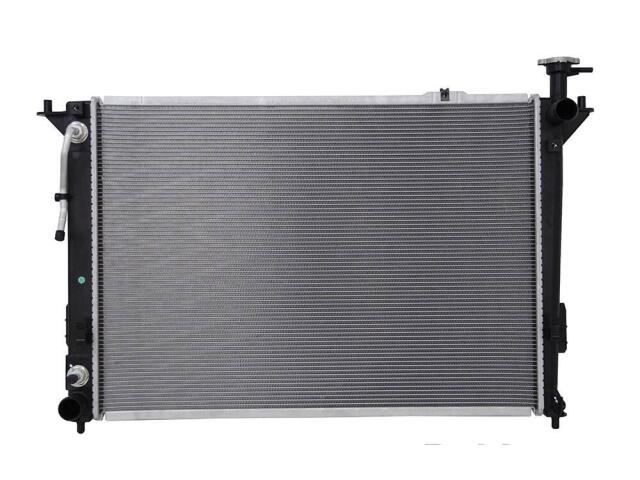

Radiator
FVP : RAD13194

Cap Included: Yes - Micro 1.1
Core Height: 26-3/8 (IN)
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 16 (MM)
Core Width: 18-5/8 (IN)
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter: 1-3/8 (IN)
Inlet Header Length: 19-5/16 (IN)
Inlet Header Width: 1-13/16 (IN)
Outlet Diameter: 1-3/8 (IN)
Outlet Header Length: 19-5/16 (IN)
Outlet Header Width: 1-13/16 (IN)
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings: 14-9/16 (IN)
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 7

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	253101U25*

品牌	号码
OE	253102B30*
